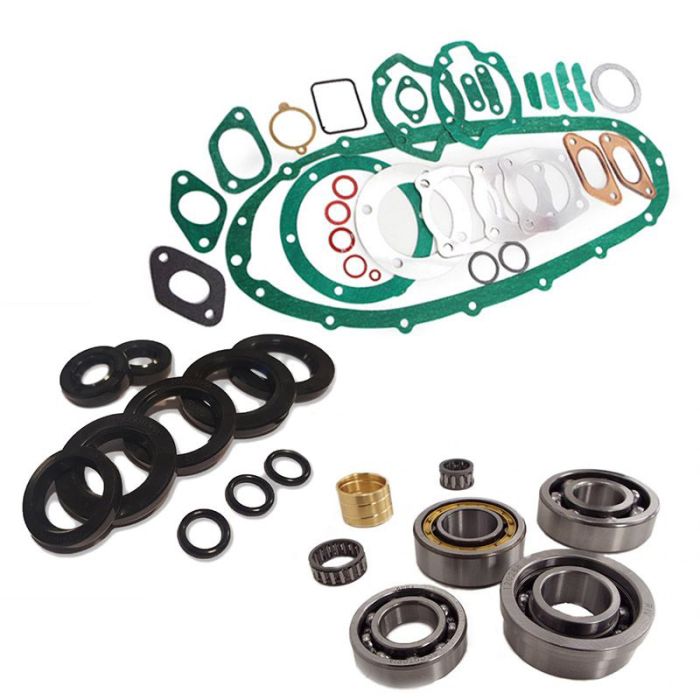

Scootopia Lambretta DL/GP 125, 150, 175 & 200 Engine Gasket, Oil Seal & Bearing Kit

A comprehensive Scootopia engine overhaul kit for Lambretta engines using a DL/GP crank, combining a complete gasket set, oil seal set and engine bearing set into one convenient package.

All components are to a high-quality specification, making this an ideal choice when rebuilding or refurbishing a Lambretta engine.

Suitable for DL/GP 125, 150, 175 and 200cc engines, as well as earlier Lambretta models that have been converted to use a DL/GP crank.

Kit Contents

This comprehensive kit contains three separate sets:

Gasket Set

• Sidecase gasket – 0.5mm

• 125/150/175 base gasket – 0.5mm

• 200 base gasket – 0.5mm

• 125 head gasket – 0.5mm

• 150 head gasket – 0.5mm

• 175 head gasket – 0.5mm

• 200 head gasket – 0.8mm

• Magneto flange gasket

• Top magneto flange gasket

• Standard exhaust gasket

• 42mm Clubman exhaust gasket

• Magneto halite washer

• 3 × drain plug gaskets

• Adjuster block gasket

• Gear swivel gasket

• 125 inlet gasket

• 150 inlet gasket

• 200 inlet gasket

• Series 1/2 handlebar gaskets

• Series 3/GP handlebar gaskets

• Assortment of carburettor gaskets

Oil Seal Set

• Rear hub oil seal

• Kickstart oil seal

• Inner magneto oil seal

• Outer magneto oil seal

• Driveside oil seal

• Rod O-rings

Engine Bearing Set

• Rear hub bearing

• 6305 driveside bearing

• NU2205 flywheel bearing

• 6004 end plate bearing

• Brass clutch bush

• Layshaft needle bearing

• Gear cluster needle bearing

Designed for DL/GP Crank Engines

This kit is suitable for any Lambretta engine using a DL/GP crank, making it a useful choice for both original DL/GP engines and earlier scooters that have been upgraded to a DL/GP crankshaft.

Having the gaskets, seals and bearings supplied together makes this kit particularly useful for a full engine rebuild, helping ensure the major service components are replaced at the same time.

Model Applications

Originally used on:

Series 1

Series 2

Series 3

DL / Grand Prix

• 125

• 150

• 175

• 200

Complete Engine Rebuild Solution

Rather than sourcing individual gaskets, seals and bearings separately, this Scootopia kit brings together the key components required for a Lambretta DL/GP crank engine rebuild.

All products supplied in this kit are manufactured by Scootopia and produced to a high-quality standard.

Please check your crankshaft, engine specification and existing components before ordering to ensure the kit is suitable for your engine configuration.
