Scootopia Lambretta Series 3 LI, SX, TV, DL & GP OSAM AC Ignition Switch

Scootopia Lambretta Series 3 LI, SX, TV, DL & GP OSAM AC Ignition Switch

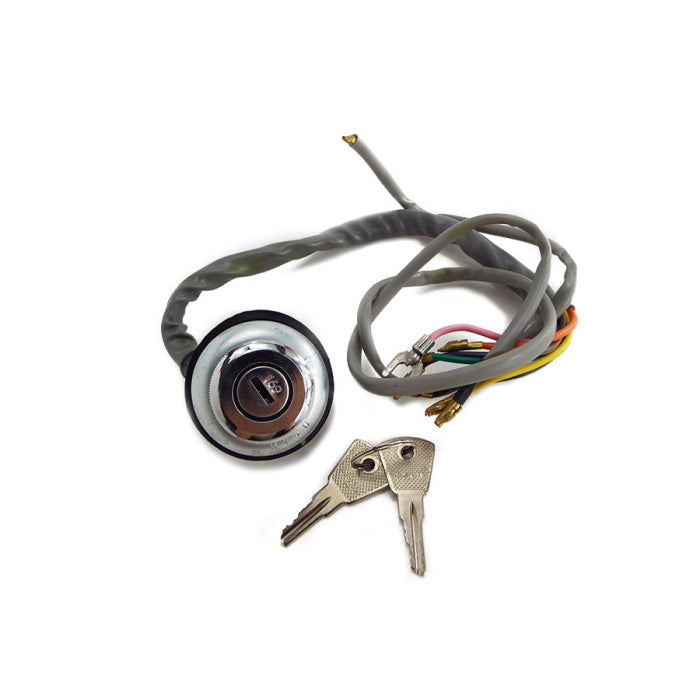

Scootopia made Lambretta series 3 & DL/GP ignition switch & OSAM marked keys (as original). These ignition switches are as good as the original ones. They have OSAM markings on both the key and the body of the switch. We have matched the Barrel size to an original switch and have even numbered them with the same numbers as original. All wiring is the same as original using original wire colours. These really are a must have for your Lambretta!

NO SIDE LIGHTS USING A 12v SET UP?

All you need to do is feed both Brown and Purple wires to the Grey junction on your bulb holder. 99% of the time, this will be your issue. You will also find the same issue using an original switch.

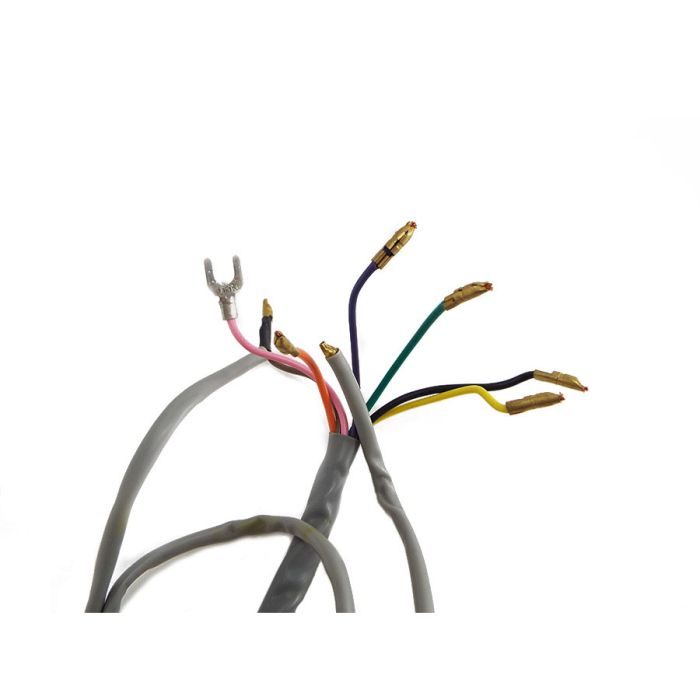

Sticky's Spanner's Manual says -The forked tag on the pink wire below is intended to fit under the forward-most of the three bolts that secure the headset to the fork clamp. Because the securing nut is masked by the headset it makes changing an ignition switch very difficult without lifting the headset off the fork stem. One alternative is to cut off the forked terminal and replace it with a small ring terminal which may be secured under one of the throttle rod arch-bracket screws.

From factory, these were originally fit to models -
