Vespa PX 125 150 Sprint Veloce DR 177cc 180cc Alloy Cylinder Kit

Vespa PX 125 150 Sprint Veloce DR 177cc 180cc Alloy Cylinder Kit

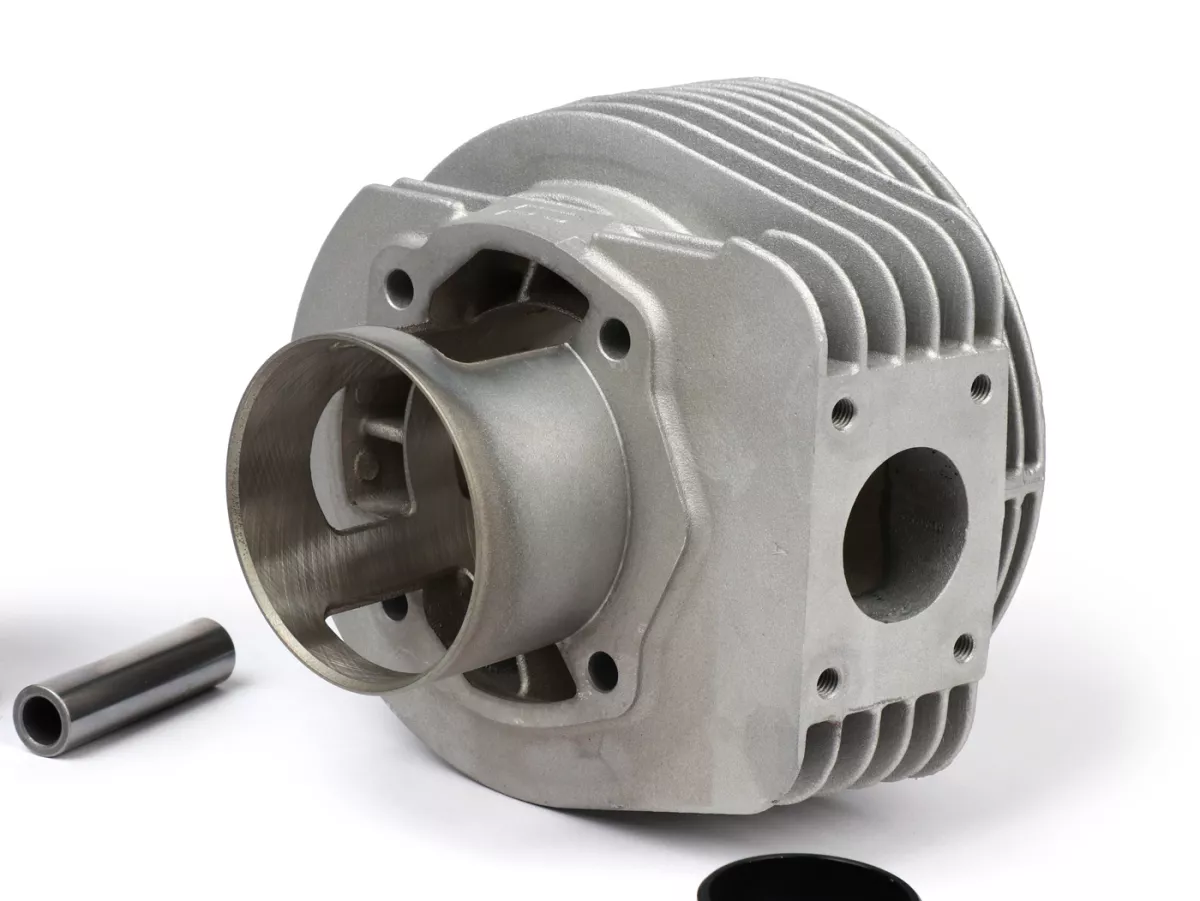

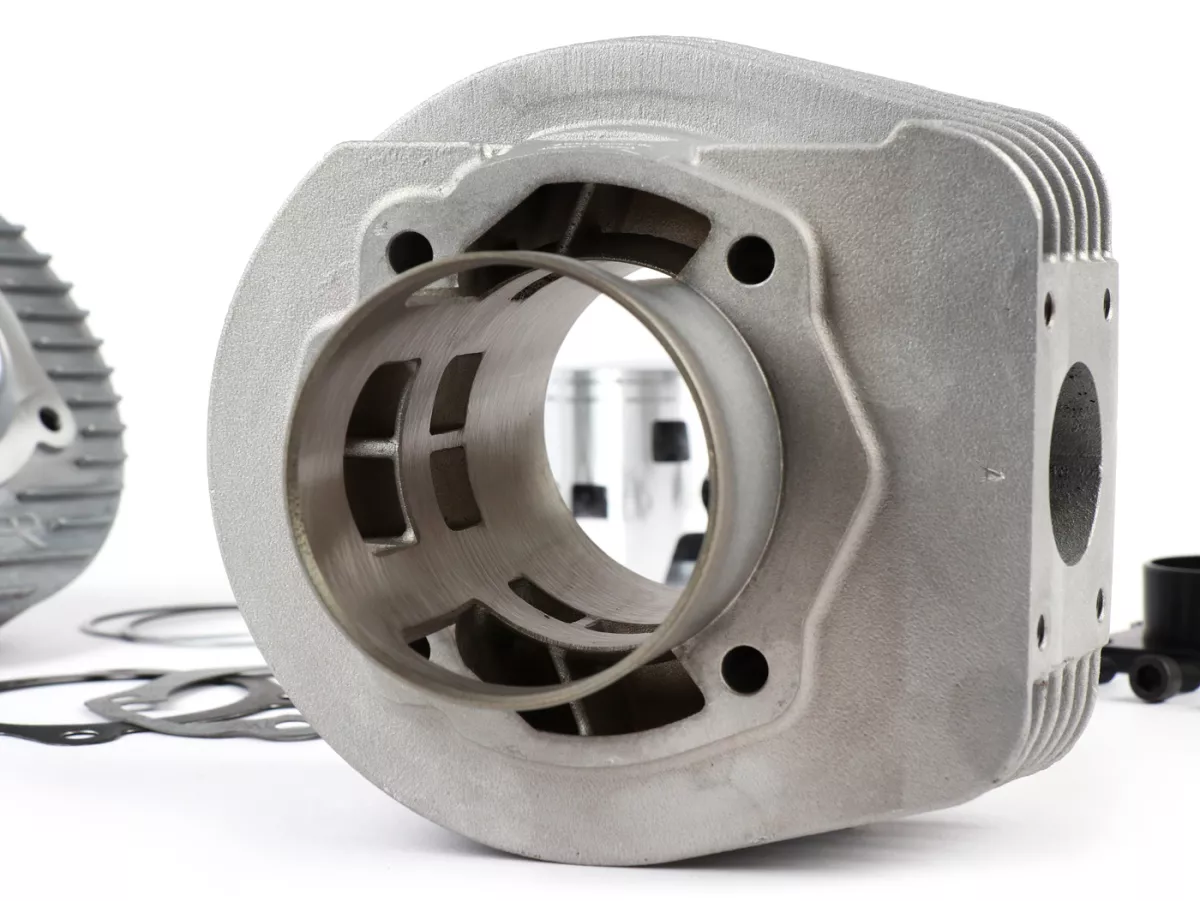

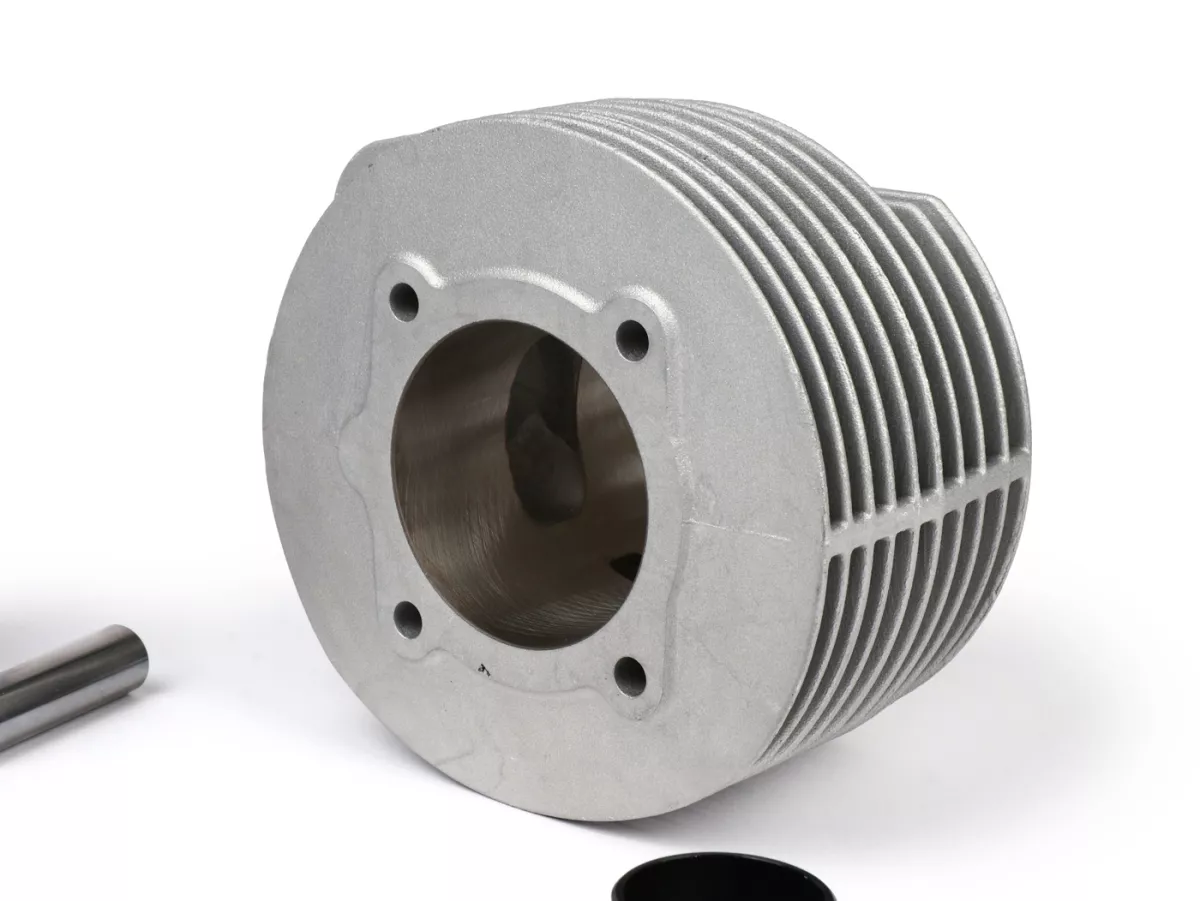

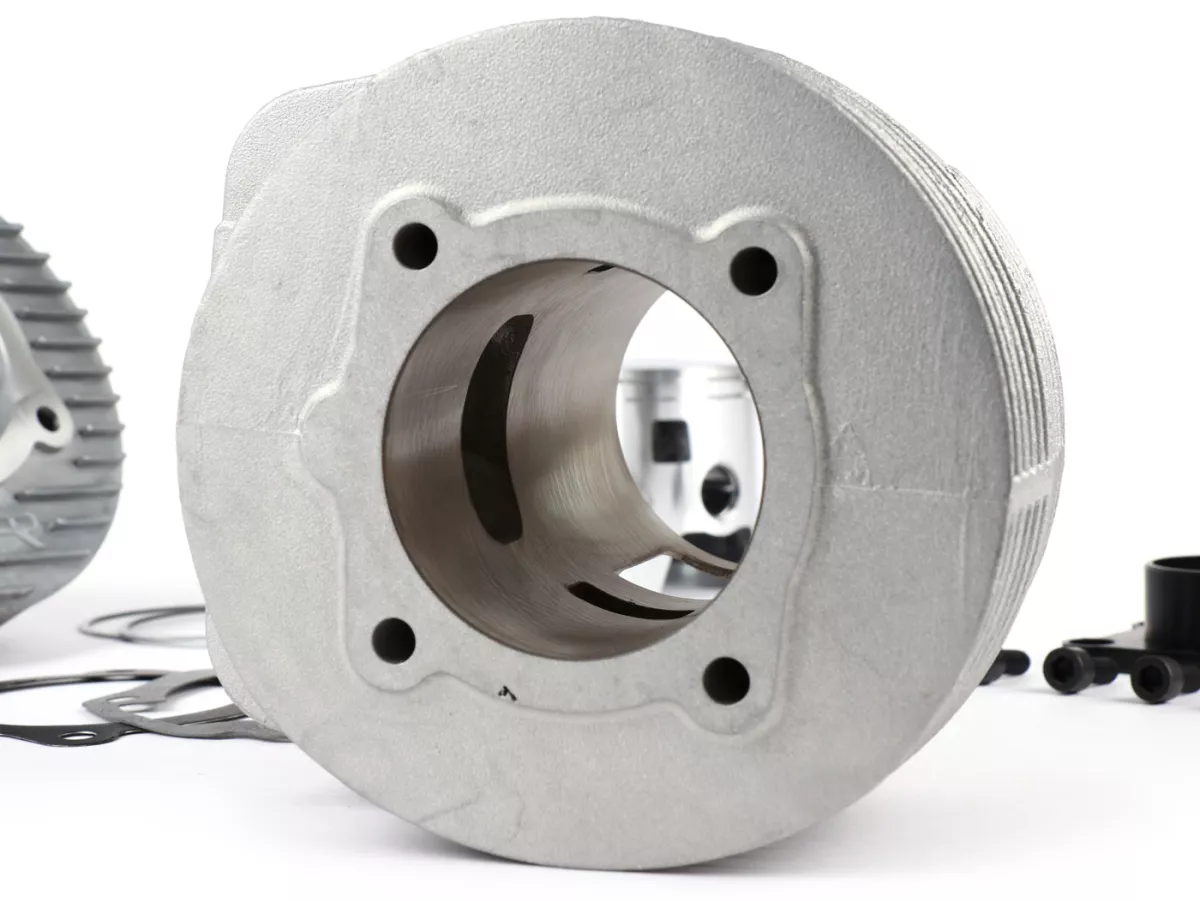

The DR177 HP aluminum is a completely new design and has nothing to do with the well-known DR177 made of cast iron. It has a modern cylinder layout with four main scavenging ducts and two support ducts. The outlet is one-piece (DR177 gray cast iron = three-piece). The exhaust flange is made of steel and is screwed on with four screws, making it replaceable.

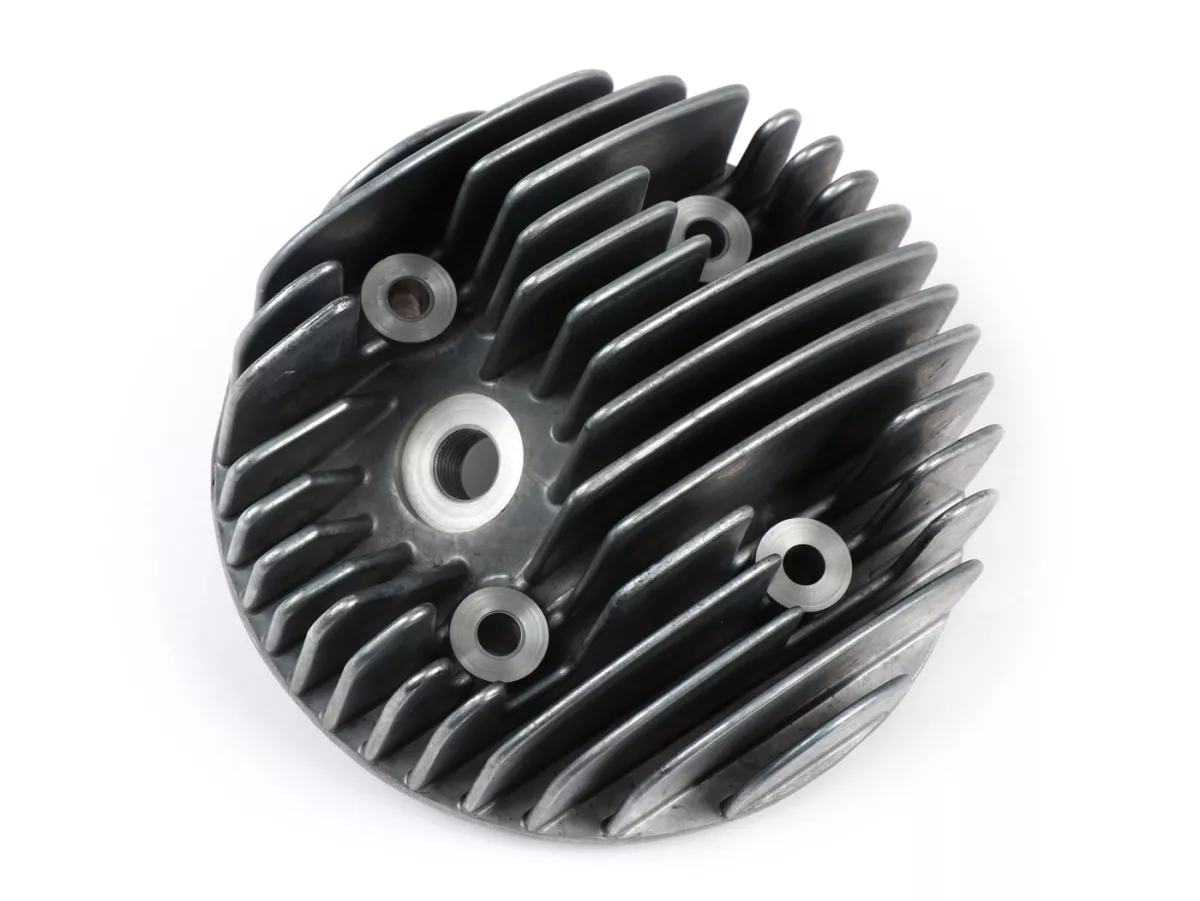

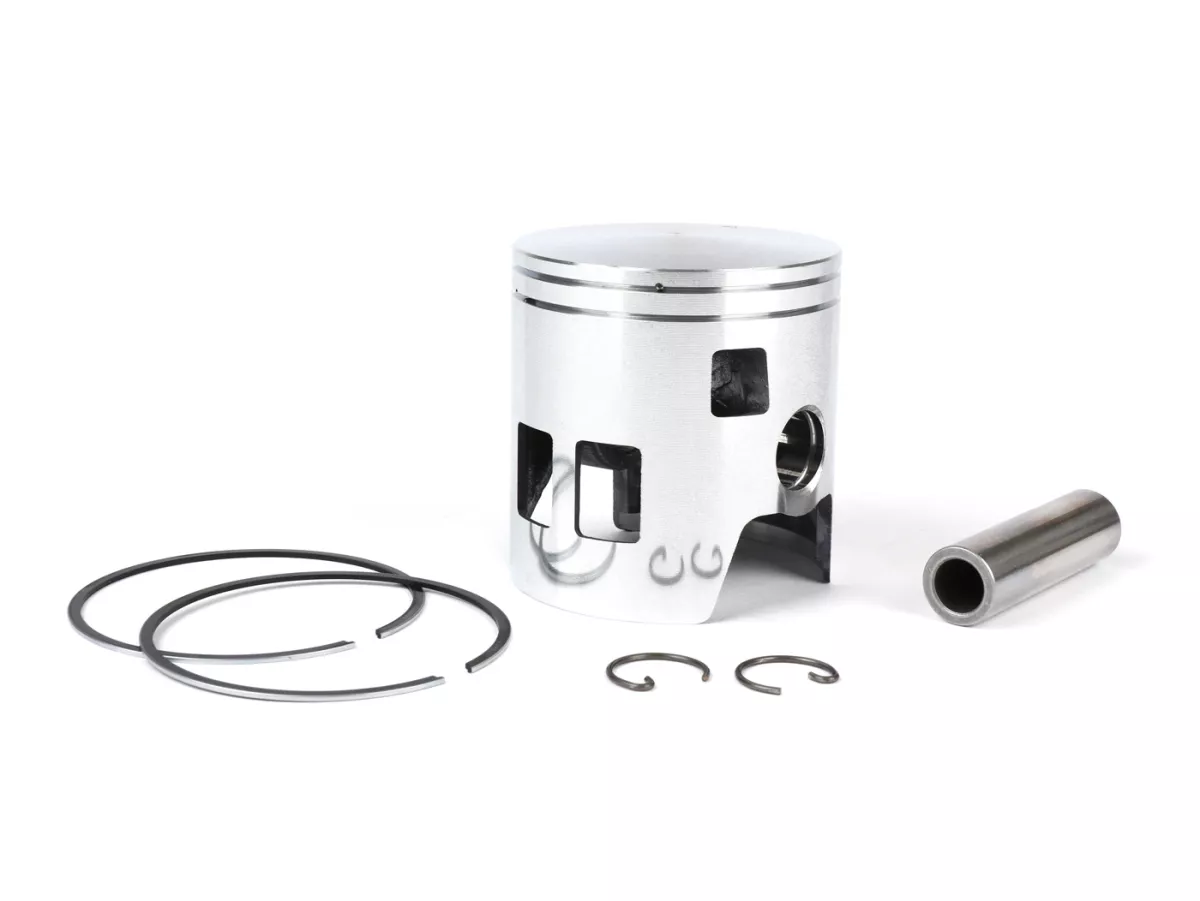

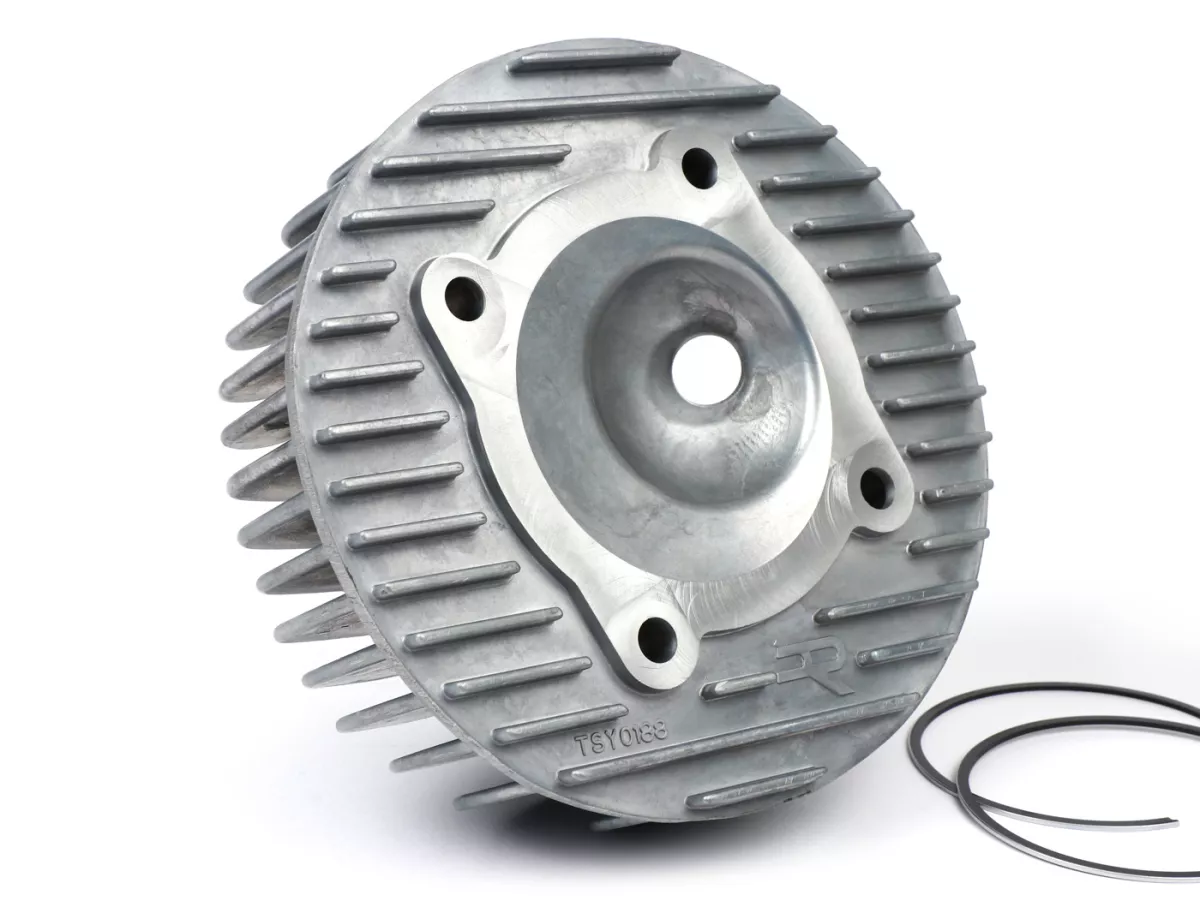

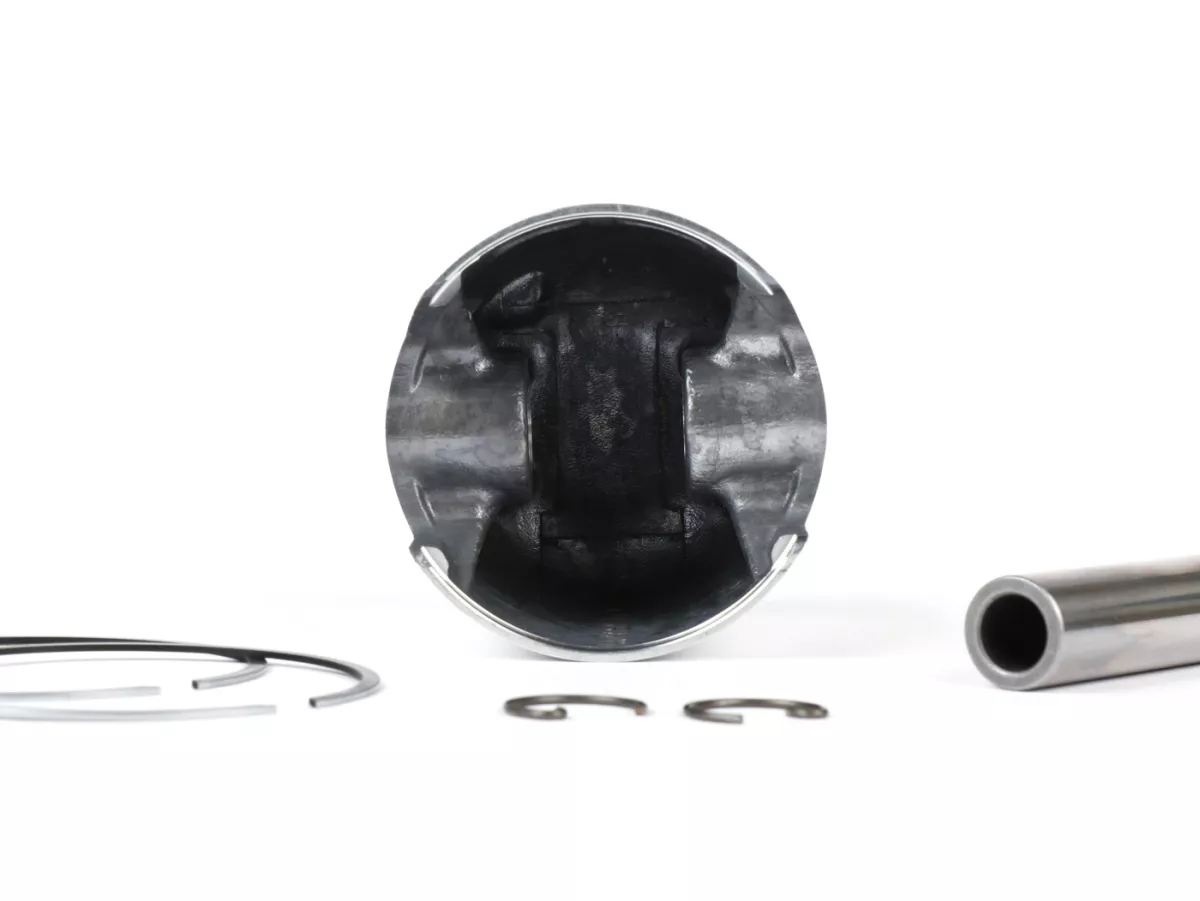

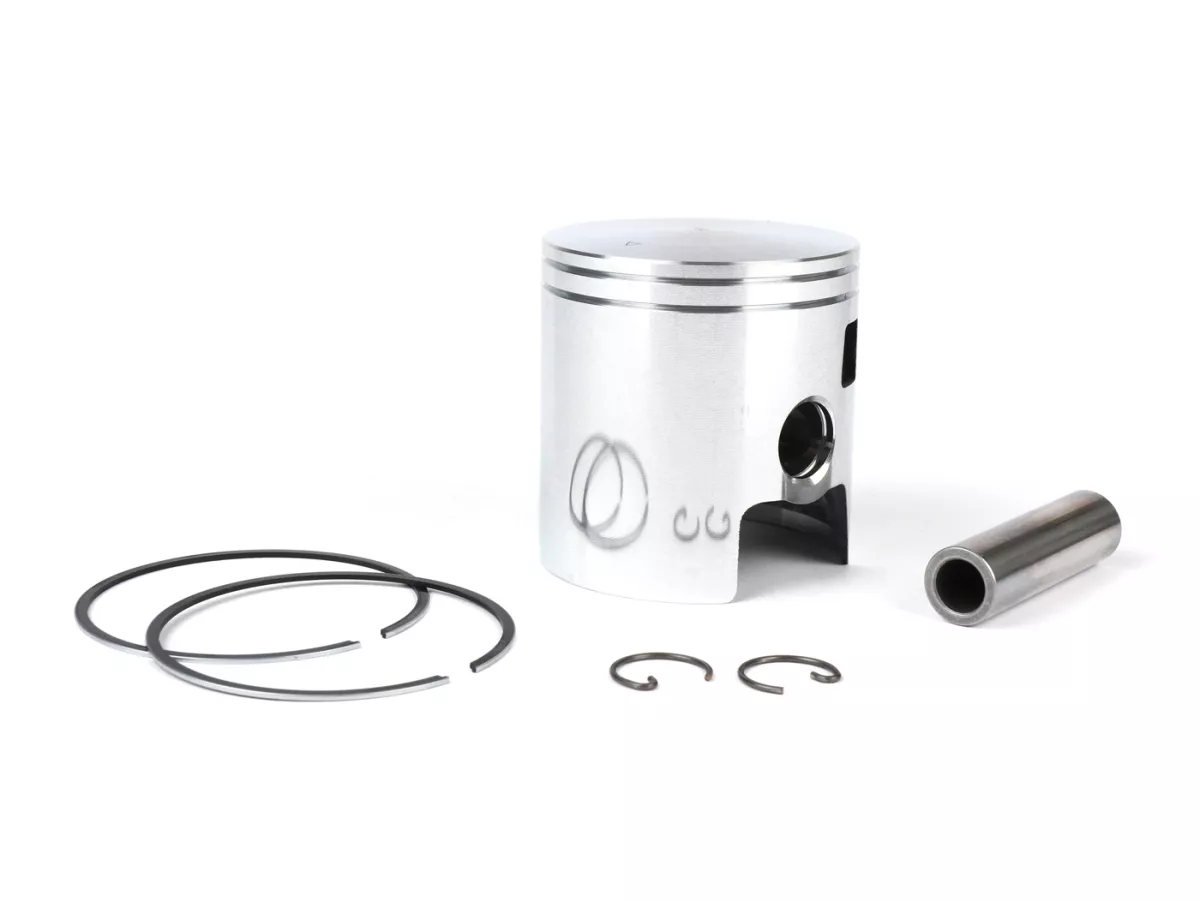

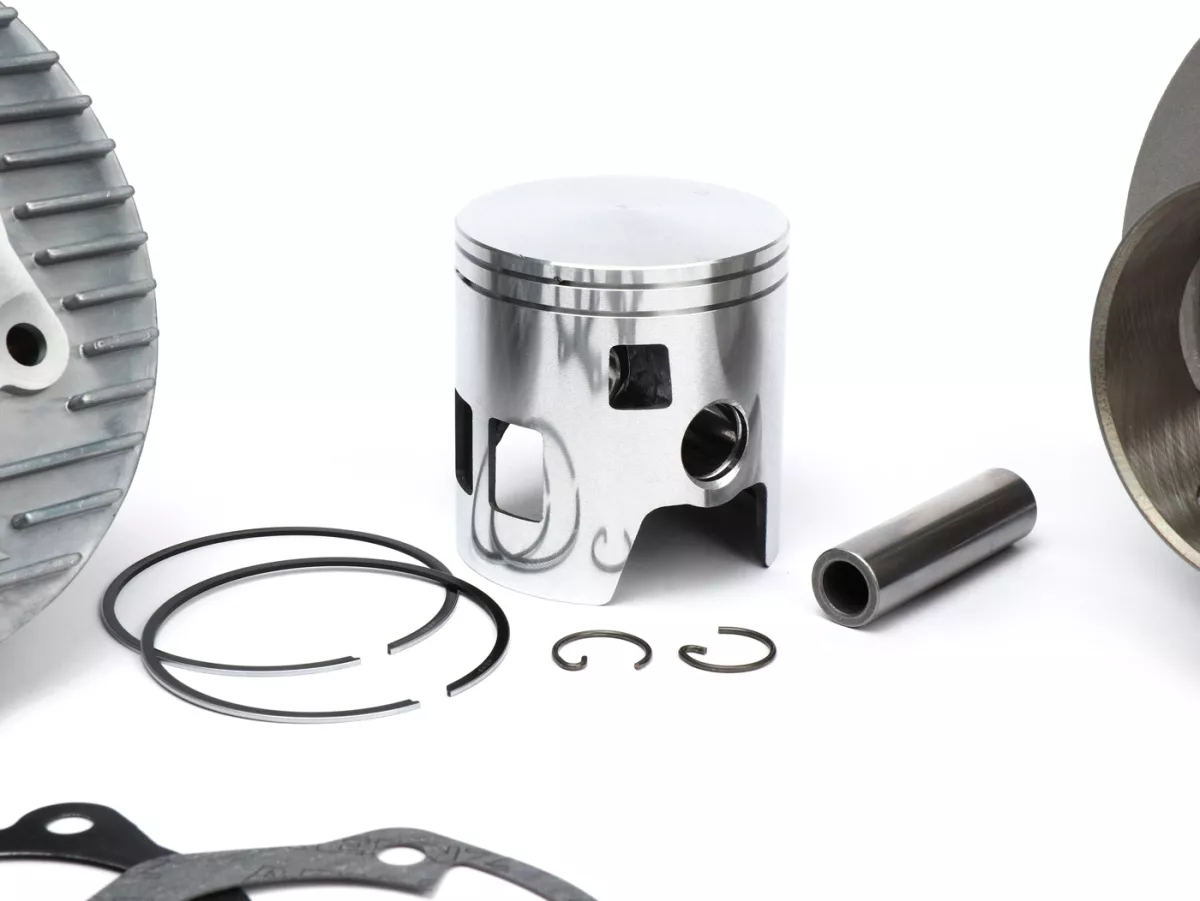

The cylinder head has cooling fins on the underside, but still has a decentralized combustion chamber. The piston has two 1.0 mm thick steel piston rings.

• Displacement: 177cc
• Stroke: 57 mm (standard)
• Bore: Ø63mm
• Control angle overflow/exhaust: 124°/177°
• Compression ratio: 10.5:1 (eff.6.7:1)
• Ignition timing: 18° v.o.t.
• Pinch point: 1.2-1.4 mm
• Spark plug: B9HS/W2AC

The timing angles are clearly different from its predecessor and, at 124°/177°, are already sporty for a touring cylinder. If the cylinder is to be used with a long-stroke shaft (60 mm stroke), the control angles are already very high (129°/179°). This means that the overcurrent angle is clearly too high for a touring engine based on a rotary valve. We therefore recommend the use of a 57 mm stroke (as standard) crankshaft. The compression ratio of 10.5:1 (effectively 6.7:1), on the other hand, is moderate and, in conjunction with the aluminum cylinder base, provides a healthy basis for a touring engine.

CONCLUSION: With the new DR177 HP Aluminum, DR offers a modern successor to its popular classic. The DR177 HP Aluminum is thermally more stable, more wear-resistant, more powerful and requires less maintenance (no clogged secondary outlets that need to be cleaned).

To Fit: P125X, P50X, PX125E, PX150E, EFL, LML
Old Vespa Sprint Veloce, and late Super ( With three transfer ports )

DR 177 kit
DR180
