Vespa Rally 200 Femsatronic SIP Performance VAPE 12V AC E-Ignition Conversion Kit

flywheel ca.: 1660g
12 magnet
110 watt
9 coils
static ignition timing, incl. bearings, oil seals, crankshaft, ignition

Powerful and reliable ignition as an update for classic Vespa models.

SIP have managed to gain the assistance of a major European producer, VAPE, to manufacture these high-end ignition systems for our beloved Vespas. A lot of development work and the lifeblood of our team goes into every ignition. Solutions have even been devised for rare Vespa models. The materials, production and construction of the SIP PERFORMANCEignition systems are of the highest quality. The laser-cut logo is a good indication of the overall clean and efficient manufacture of the components of this kit. The advantages of this ignition speak for themselvers

Strong power supply
Strong, reliable spark
Particularly stable flywheel

The electrical functions are representative of state of the art modern technology. Due to the eight coils included on the stator-plate enough power is created at tick-over revs to already fully illuminate the Vespas lighting.

The extremely stable flywheel

One of the most major advances achieved is the production of the fly/fanwheel unit as a single component, avoiding a riveted inner mounting-cone and an uneven rotation. This greatly reduces engine vibration while also noticeably extending the working life of the flywheel side crankshaft bearing. The fanwheel is CNC machined from solid aluminium and delivers an identical volume of cooling air to the cylinder as the original PX 125 and PK items from PIAGGIO, throughout the whole rev-range. The amount delivered by most aftermarket ignition systems is easily surpassed by our design, without preventing higher motor speeds.

The flywheel intended for the smallframe Vespas weighs 1390 gr. and for the largeframe 1660 gr., making them both considerably lighter than their original counterparts. This primarily improves throttle-response, but leaves the motor easily manageable in urban traffic and while carrying a pillion. Our SIP – VAPE flywheels are 100% compatible with the original flywheel remover type.

The two versions of the SIP-Vape ignition: Road or Sport

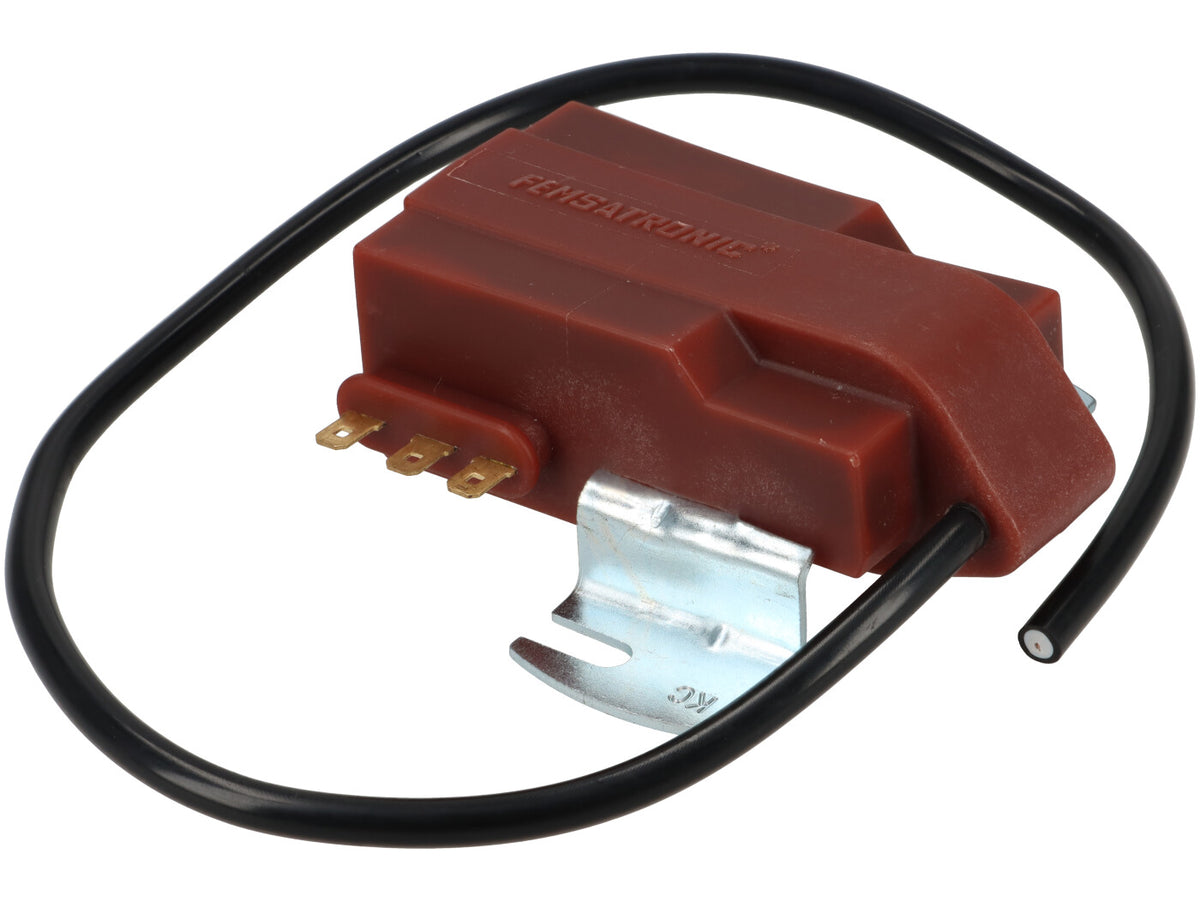

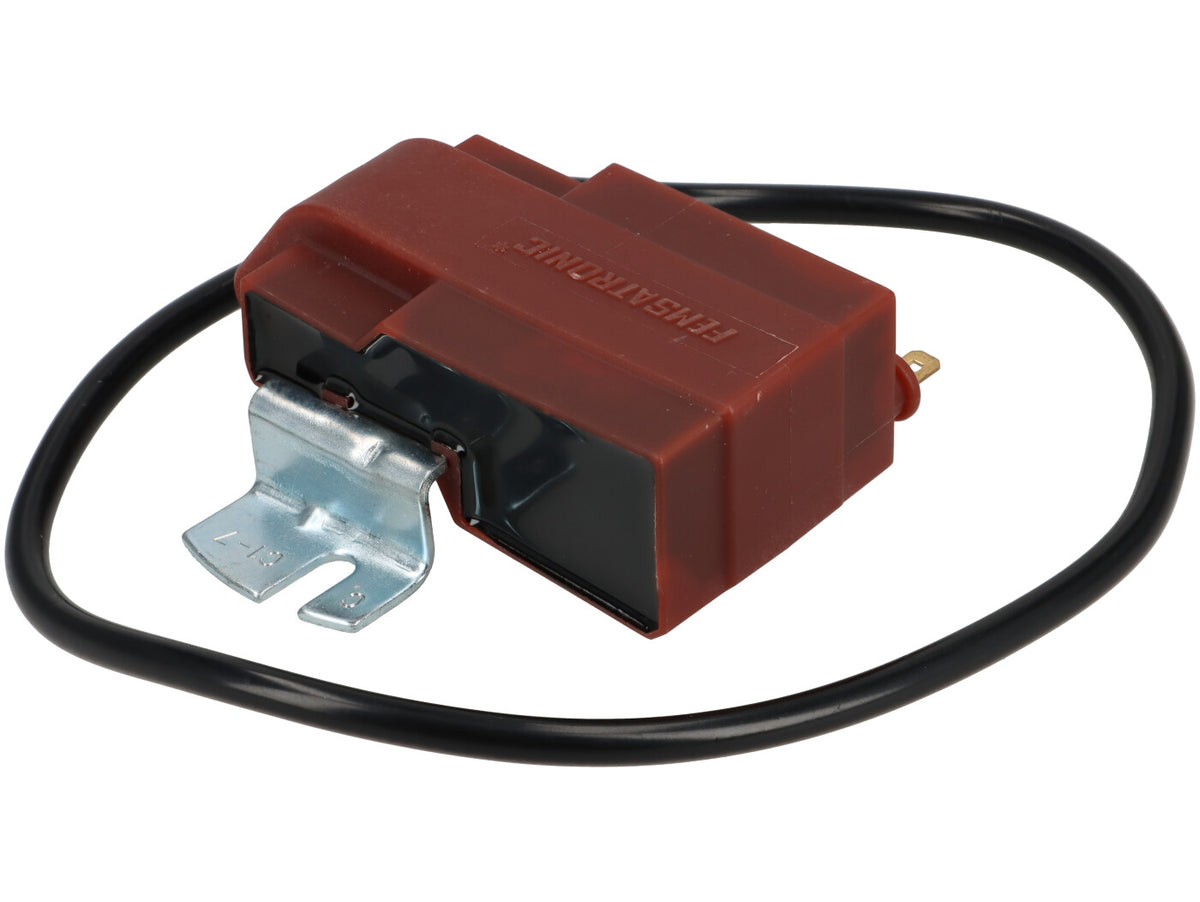

The CDI module is available as a 'Road' version with a static ignition point, similar to the original item, or a 'Sport' version that includes a variable ignition point which advances at low revs. This increases the available torque - especially at the lower end - and the ignition point is then gradually retarded as the rpm rises into the power-band. This also helps reduce the combustion temperature while simultaneously providing an increased rev-range. The exact adjustment range is shown in the instructions as a diagram. Between 4000 and 8000 rpm. E.g. adjusts the ignition by 8 degrees towards retarded.

The pick-up on the stator-plate is split into two and arranged on top of another instead of next to each other as with the original design. This eliminates the possibility of false positioning during the initial set up due to the sloppy manufacturing tolerances included on many Vespa engine casings, crankshafts, stator-plates and flywheels. The exact ignition point is clearly marked with a precise line on both the flywheel and stator-plate, which allows ignition adjustment without stroboscopic lamp. All you need to do is find out the top dead center (TDC).

Alternating current AC or direct current DC?

We have both AC and DC versions available. The most common variant is the AC version for all models without a battery. We recommend the DC type if you wish to power digital components such as the SIP Speedometer, or you require a high battery loading charge.

Note: By using the DC version with SIP Speedometer you required aRev Signal Filter from KOSO. Instead the Rev Signal Filter you can also connect the brown Cable from the SIP Speedometer to the white CDI Cable of the SIP/VAPE CDI with an extra Cable! Setting on Speedometer by using the DC Version is 1 and AC is 6.
When installing a SIP-Vape ignition in the DC version in all PX models with a combined ignition and steering lock (i.e. usually Lusso and later models), special features must be observed: These models with battery have DC and AC circuits as standard the on-board electrics installed. High beam and low beam are supplied with alternating current, which is switched via an output on the ignition lock.

Note 2:The original Piaggio regulator can be retained on models that are equipped with a stator plate with 5 cables as standard.
It gets a little more complicated with models that are serially equipped with an ignition base plate with 7 cables. Here, the on-board network and the controller of the standard 5-cable variant must be converted.

Conclusion: The SIP-Vape ignition ends old problems of Vespa ignition: The flywheel is virtually ruled out as a source of error. The spark is always generated reliably. There is always enough power available for the light.
