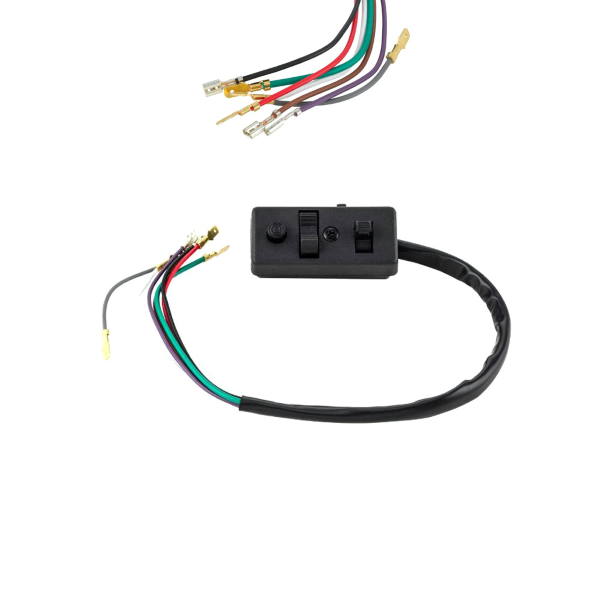

Vespa 50 Special / Elestart Light Switch - European Model / 12V Conversions
Light Switch / Horn button / Ignition Cut Out.

With high and low beam head lamp facility.
7 Wire

This switch is not ideal for the UK 50 Special Version which also has a yellow and a positive grey wire but can be modified to suite the Beedspeed 12v Electronic kit - see PDF above for conversion details. The Lights are either on or off - no in between pilot lights only position.

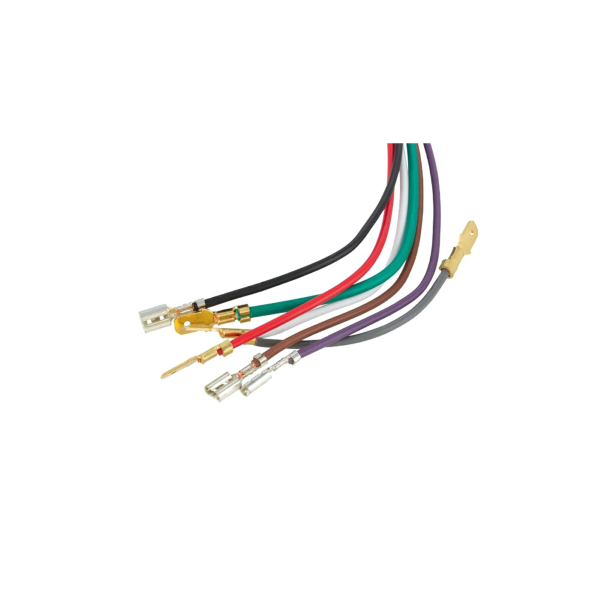

Standard Wire Functions --
Red: Ignition Cut Out
Black: Supply for lights and earths out the ignition when the ignition cut out button is pressed.
Violet: Main Beam headlamp
Brown: Low Beam. Can be used as a pilot light supply for models without low beam.
White / Grey: Rear Light and linked to horn circuit. Can also be an alternative power supply to the pilot light on some models.
Green: Horn and linked to rear light circuit

BRAND	MODEL	CC	YEARS	CHASSIS
PIAGGIO	VESPA 50 SPECIAL	50	1970-1972	V5A2T
PIAGGIO	VESPA 50 SPECIAL	50	1972-1975	V5B1T
PIAGGIO	VESPA 50 SPECIAL ELESTART	50	1970-1972	V5A3T
PIAGGIO	VESPA 50 SPECIAL ELESTART	50	1972-1975	V5B2T
PIAGGIO	VESPA 50 SPECIAL ELESTART	50	1975-1976	V5B4T
