Vespa V50 PK50 PK80 PK125 Prim 125 ET3 Ape 50 Pinasco Zuera SS 135cc Racing Cylinder Ø57.5mm

Product Code: BD15989

£299.99

Delivery Information

We're pleased to offer FREE UK Delivery on orders placed over £150.00.

Delivery is available Worldwide. See our Delivery Information page for further details.

Returns & Refunds

We're committed to providing a great customer service and wish our customers to be 100% satisfied with purchases.

Please review our Returns Information or Contact Us if you have any queries.

Payment Security

All our orders are 100% secure. We know this because our e-commerce system is Level 1 PCI compliant and uses 128 bit SSL encryption to ensure credit card data is secure.

Which is the same level of encryption used by large banks around the world.

Aluminium / 57.5mm bore / five transfer ports / 135cc / 51mm stroke

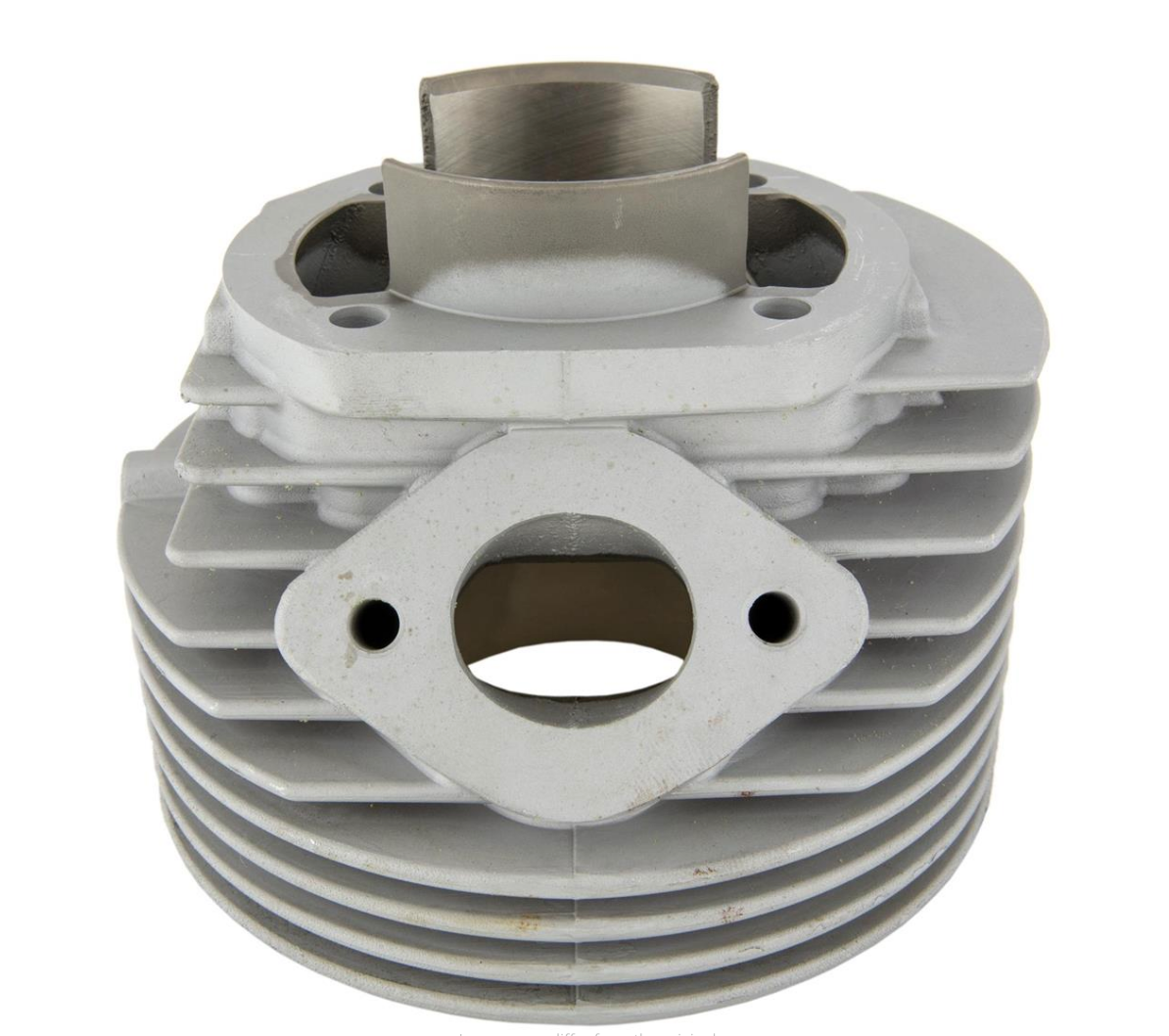

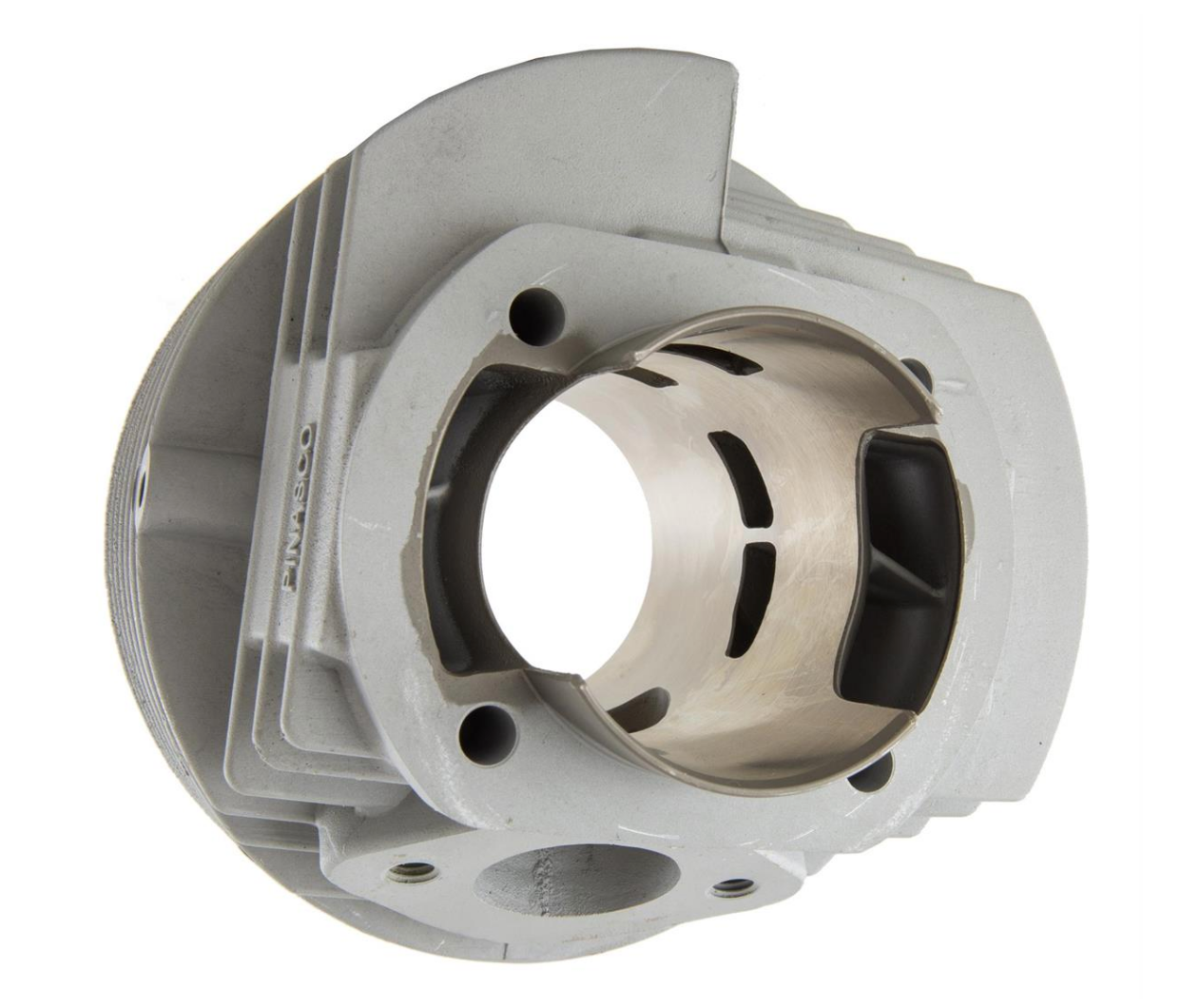

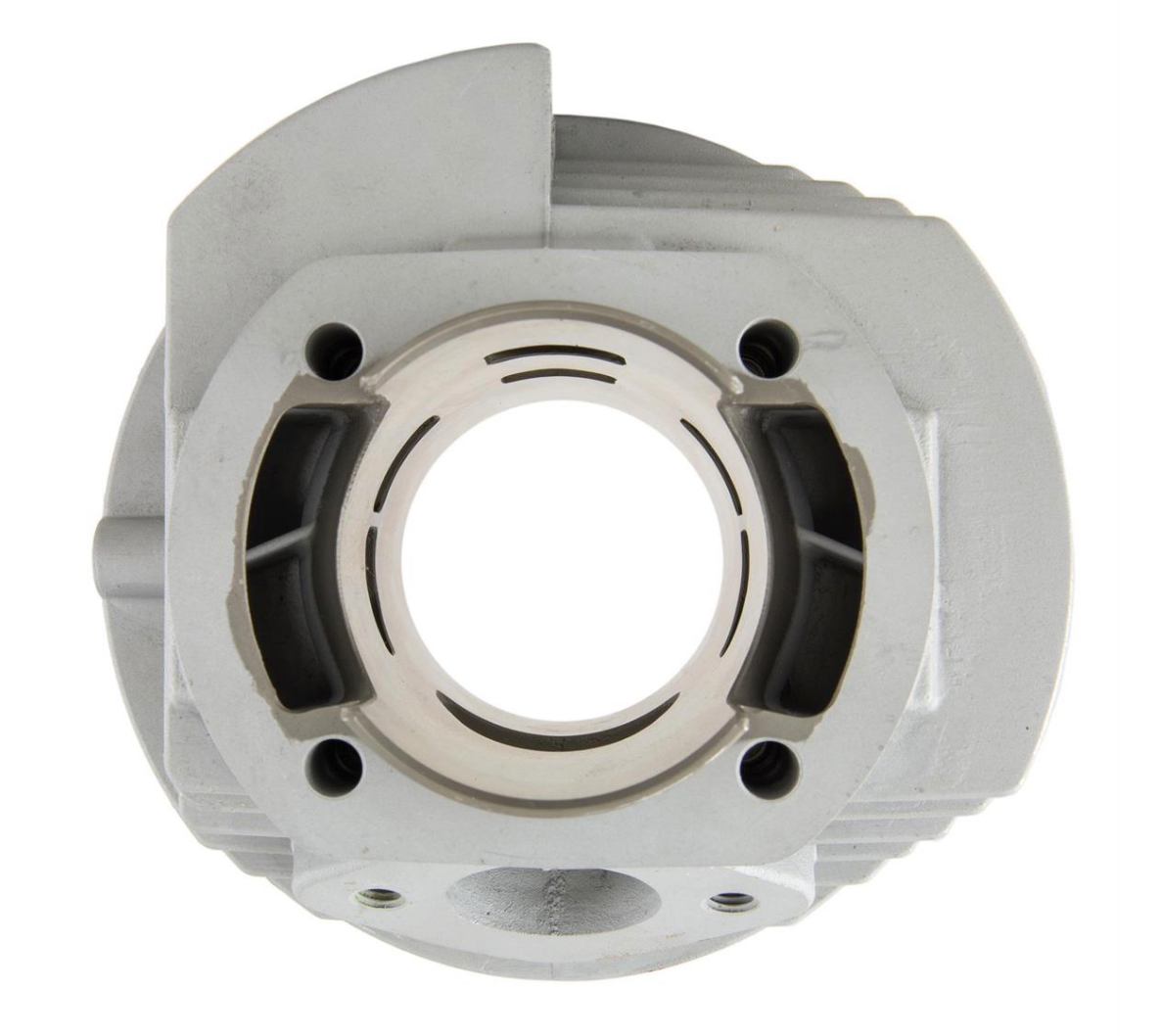

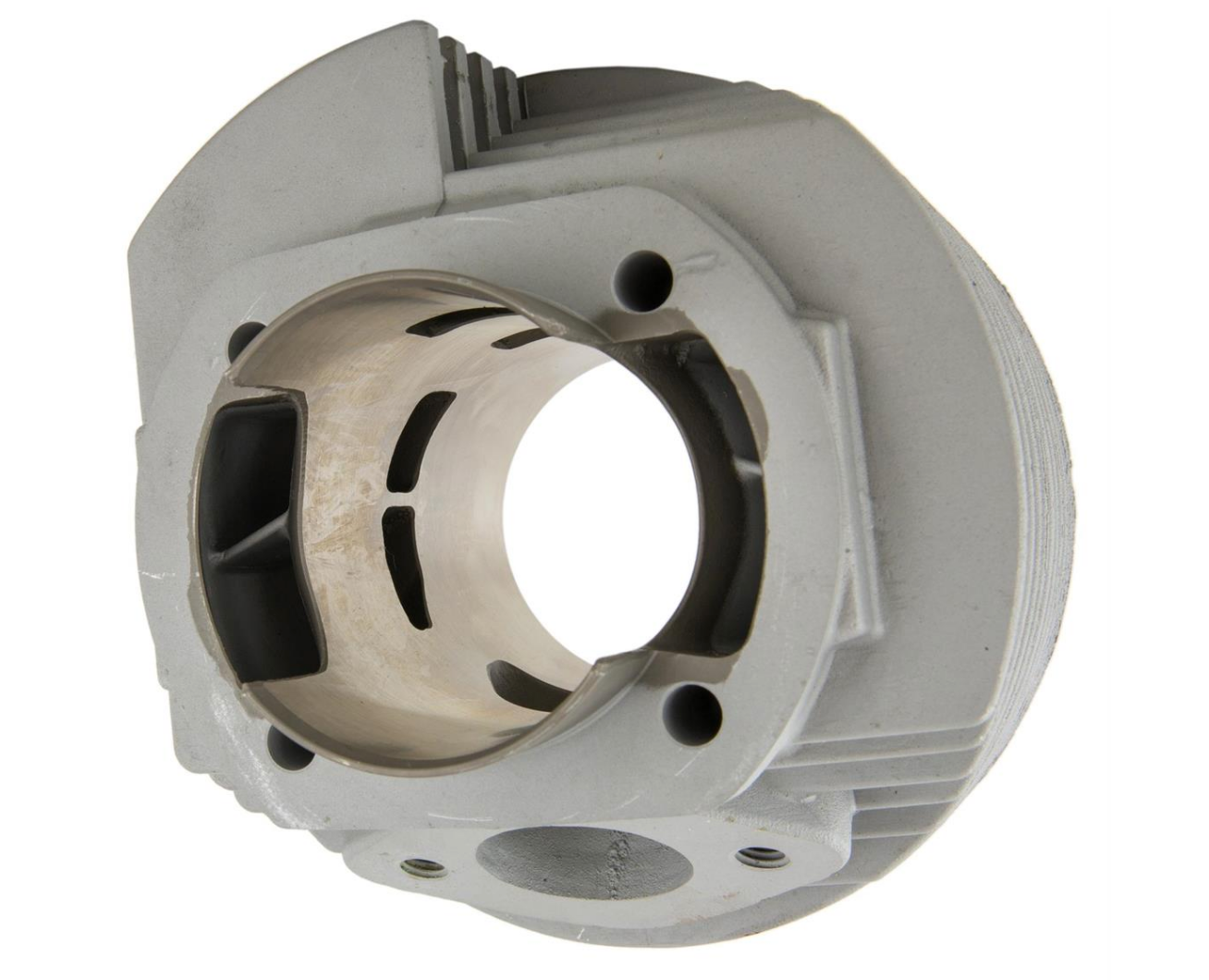

The 'Zuera SS 135cc' PINASCO race cylinder for the Vespa smallframe motors name is inspired by the 'Circuito Internacional de Zuera' race circuit in Spain. Its five transfer and single exhaust port layout sees it rubbing shoulders with the likes of Parmakit, SP09, Quattrini M1, etc.

This performance cylinder is manufactured from aluminium and is provided with a high end bore lining material ensuring excellent thermal properties and a solid endurance. The exhaust port is wedge-shaped with a 66% chordal dimension within the 57.5mm bore. The 8mm exhaust mounting studs are 52mm apart and the unmodified port timing is 125° to 185°.

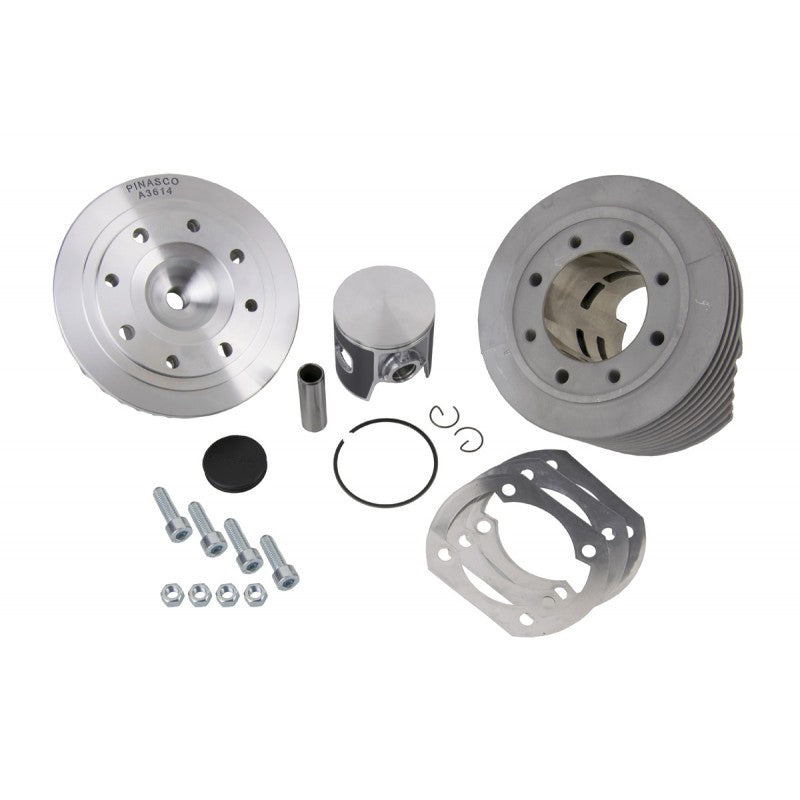

The cylinder head is held in place by eight bolts and the centrally located long-thread spark plug opening will require a modified cooling hood to be fitted. The original spark plug opening can be sealed using the specially designed stopper included with the kit. Full Italian and English instructions are included in the delivery. A positioning shoulder is included in the design to ensure a centrally positioned cylinder head.

The plated aluminium piston weighs 169gr. and is equipped with a single 1mm thick piston ring and a bi-conic gudgeon pin. In order to fit this cylinder the upper part of the flywheel casing on the engine will require modification. Full English and Italian instructions are included with the kit.

Conclusion: A high quality produced performance cylinder, fit for many uses. From moderate tuning for everyday use, through to a full-blown racing set up! The minimal modifications required for its inclusion can almost be considered as 'plug & play'! A rewarding upgrade from traditional cast-iron type cylinders, such as the POLINI 133cc.

Pinasco cylinder kit for Vespa 50-125 and Ape 50 in aluminum, ideal for those who want to give a little liveliness to their fifties. The technical characteristics of this cylinder are a considerable torque and reduced consumption, the aluminum with Nicasil coating gives the Pinasco thermal group exceptional strength and unique resistance, guaranteeing superior performance in all operating conditions.
