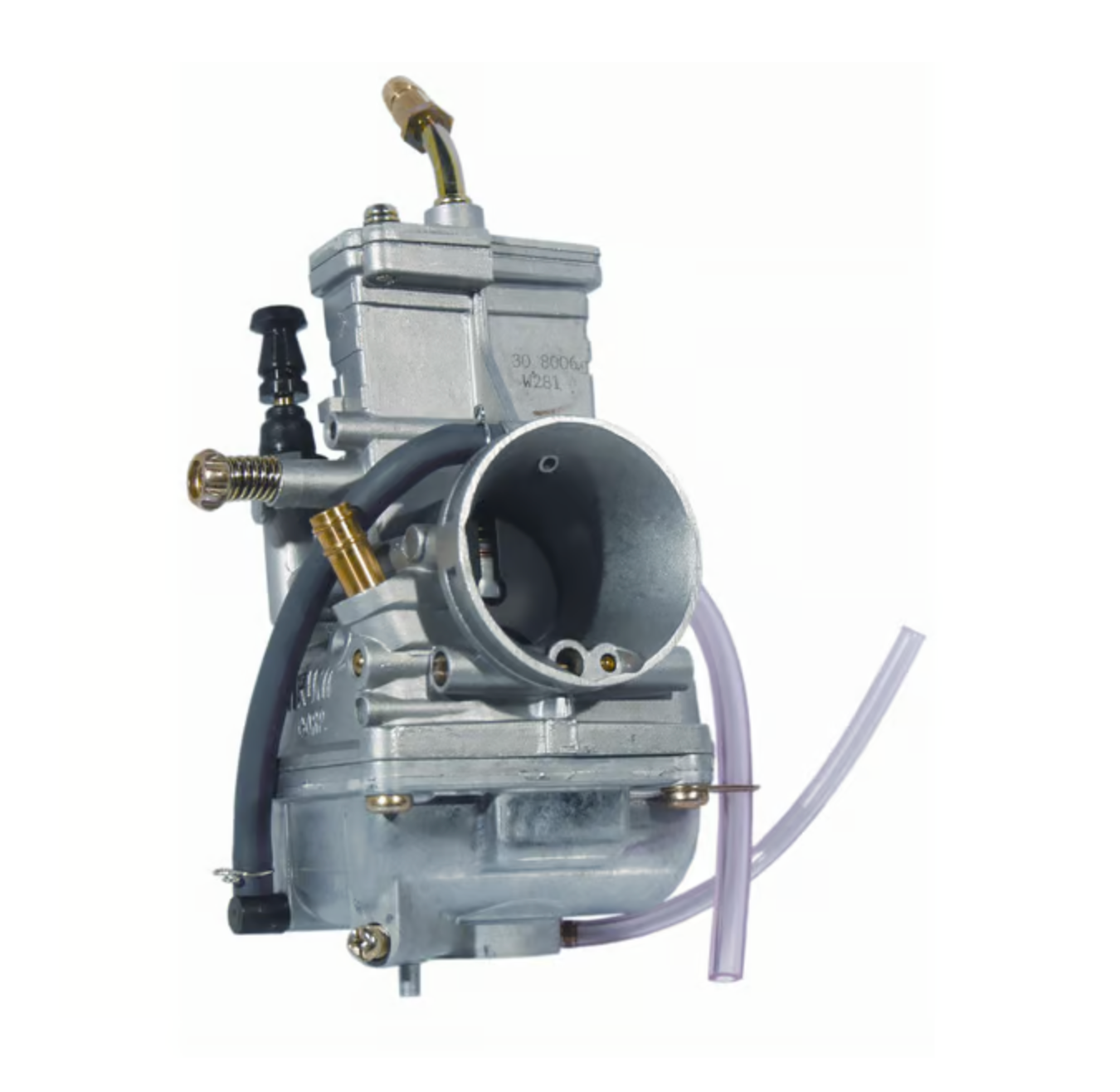

MIKUNI TMX 30 flat slider Carburettor

MIKUNI TMX 30 flat slider Carburettor

• Race
• Ø 30 mm
• connection engine: 36mm
• connection filter: 50mm
• main jet 195
• idle mixture jet 40
• Powerjet: 80

MIKUNI flat slider carburettors have clearly lower dimensions than the VHSA/VHSB series from DELL'ORTO. This is not only evident when they are installed. The compact and short design ensures an extremely direct response. At the same time, in combination with the enclosed jet system, the voluminous float chamber also guarantees a constant composition of the mix in all ranges, even if extreme centrifugal forces and acceleration forces occur. This makes them the perfect choice for sports Malossi 210cc largeframes and classic smallframe race tuning with engine performances of up to approx. 30 PS.

We stock MIKUNI 24-35mm carburettors in the TM versions (double flat slider, screw-mounted) and TMX (even more compact design, 1 rounded off on the slider side for optimised flow, some with power jets). The power jet which is installed in the TMX 27, 30 and 38 provides the possibility of using a smaller main jet and to enable the range between 3/4 throttle and full throttle to run more leanly in order to get a better torque on straights. So that the mix does not get leaner under full load because of the smaller main jet, this is where the power jet comes in and - depending on the slider position and the load range - injects additional mix into the carburettor. As a rule the carburettors can be tuned via the main jet. In contrast to DELL’ORTO for instance, MIKUNI not only states the bore, but also the flow-through of the jets. The flow-through of the jets is linear over the entire rev range. This means the individual power ranges of the MIKUNI carburettors can be set and delineated relatively neatly from each other. As a basic guideline, the following applies: MIKUNI jet size corresponds with the DELL'ORTOx2 jet size.

Conclusion: Superb finishing and relatively easy to tune.
