Vespa PX200 P200 Rally Cosa 200 MALOSSI X360 Reed Valve Intake Manifold for PHBH VHSH PWK28 TMX30 SmartCarb

Vespa PX200 P200 Rally Cosa 200 MALOSSI X360 Reed Valve Intake Manifold for PHBH VHSH PWK28 TMX30 SmartCarb

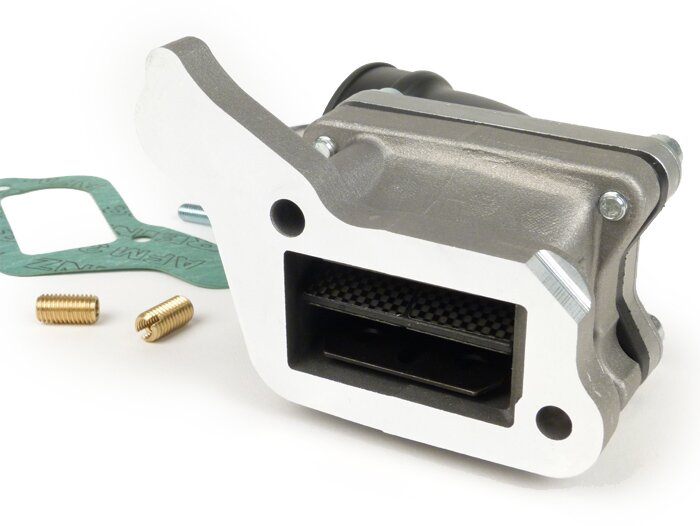

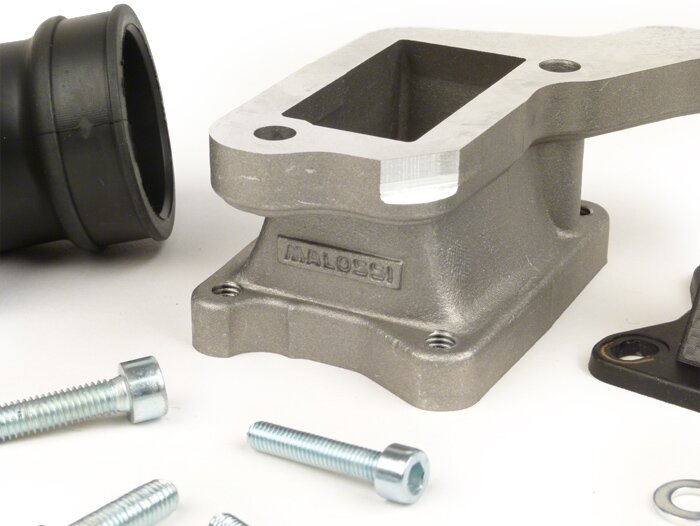

Diaphragm box with type AM6 diaphragm, the new intake manifold X360 from Malossi for the 200cc engines with long carburetor bowl sealing surface. 2 threaded sleeves are supplied, which are screwed into the original M7 screw connection points. Now the box can be fixed with M6 hexagon socket screws. The intake manifold can be rotated as desired and seals with a lip to the retaining plate.

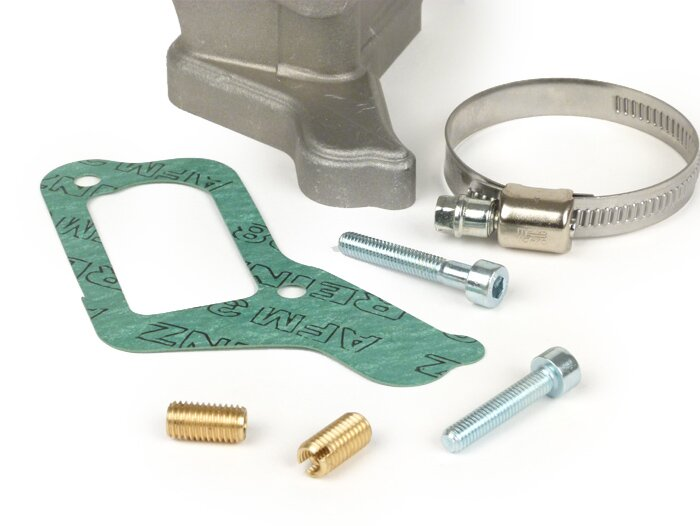

Scope of delivery

• Gasket, clamp

• 2 screws, threaded sleeves

• Diaphragm box, diaphragm

• Intake manifold AW 34, retaining plate



Attention: The intake manifold only fits on engines with a minimum length of 70mm between the carburetor stud holes measured in driving direction (see also downloads).

Fitment
VESPA COSA 200
VESPA P 200 E 1978>1981
VESPA PX 200 E 1981>1984
VESPA PX 200 E DISC 1998 on
VESPA PX 200 EFL 1984>1997
VESPA RALLY 180
VESPA RALLY 200
