Vespa PX Rally Sprint Super VNA/B VBA VBB Super GT/R PINASCO 251cc Slave Reed Valve Intake Engine Kit including Exhaust & Electronic Flytech Ignition
Product Code: BD16658
We're pleased to offer FREE UK Delivery on orders placed over £100.00.
Delivery is available Worldwide. See our Delivery Information page for further details.
We're committed to providing a great customer service and wish our customers to be 100% satisfied with purchases.
Please review our Returns Information or Contact Us if you have any queries.
All our orders are 100% secure. We know this because our e-commerce system is Level 1 PCI compliant and uses 128 bit SSL encryption to ensure credit card data is secure.
Which is the same level of encryption used by large banks around the world.

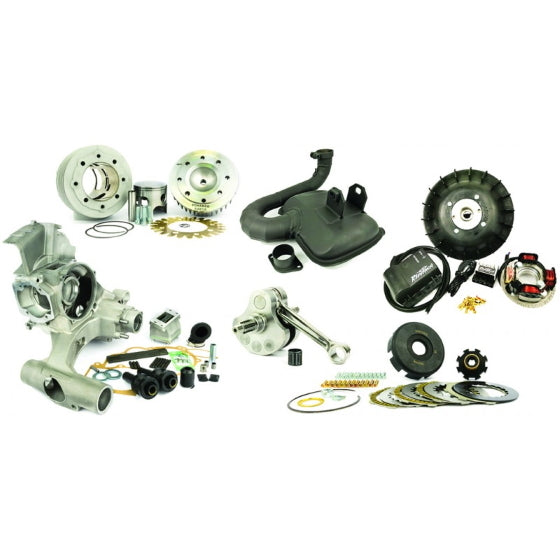

Vespa PX Rally Sprint Super VNA/B VBA VBB Super GT/R PINASCO 251cc Slave Reed Valve Intake Engine Kit including Exhaust & Electronic Flytech IgnitionIncludes:
- Vespa PX Rally Sprint Super VNA/B VBA VBB Super GT/R PINASCO 251cc Slave Reed Valve Intake Engine Kit
- Vespa PX PE T5 Super Sprint Rally PINASCO 251cc Kit Touring Classic Racing Exhaust
- Vespa PINASCO 251cc Flytech Ignition Kit 1400g

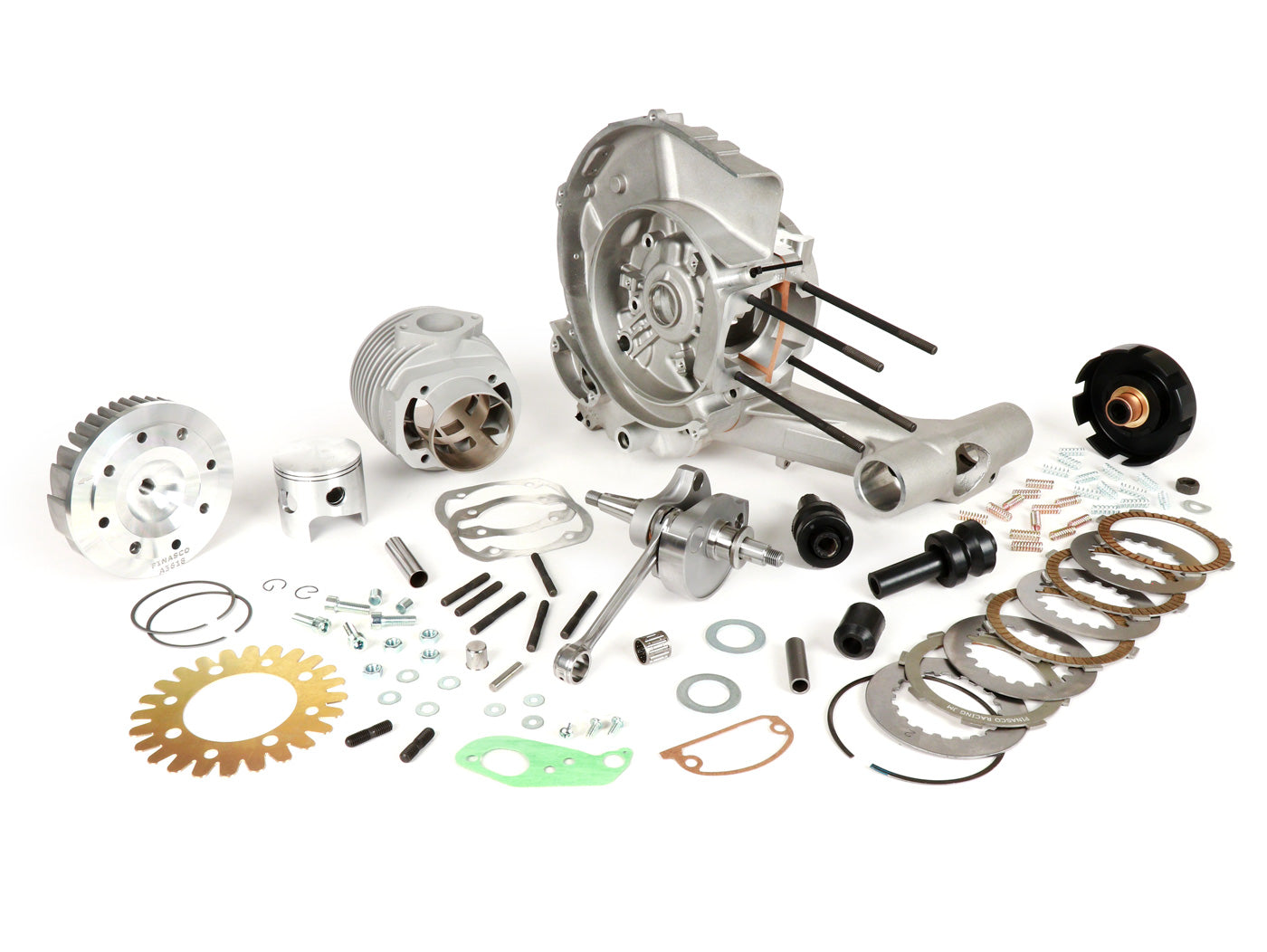

Vespa PX Rally Sprint Super VNA/B VBA VBB Super GT/R PINASCO 251cc Slave Reed Valve Intake Engine Kit;
The Pinasco 251ccm engine kit is suitable for all Vespa large frame models such as Vespa PX, T5, Sprint, TS, Rally, Super, GT, GTR, VNA, VNB, VBA, VBB. Also suitable for the Spanish Motovespa such as CL, DN, DS, TX, PX, GS, Sprint, GT160 as well as the licensed models of LML / Stella. So the cubic capacity of a 125ccm vehicle can be doubled without being conspicuous on the outside. Pinasco states the performance with up to over 30PS, this is of course strongly dependent on the components used such as exhaust and carburetor. A paradediscipline of the Pinasco 250ccm engine is its very quiet running and its good pulling power.
The housings are manufactured in two versions:
MASTER = ROTARY VALVE INLET (HOW FROM WORK PIAGGIO)
SLAVE = REED VALVE
The housing is based in its basic features on the Vespa T5 engine housing.
It therefore has a wide and therefore stable crankshaft. The enclosed Pinasco crankshaft has a toothing on the clutch side. Therefore, only the Pinasco clutch (also included in the set) can be used.
Crankshaft bearing on the alternator side is designed as a large roller bearing (NU205 25x52x15mm)
Shaft seal ring
The housings are manufactured to accommodate a metal shaft seal ring (clutch side). Here please always use the version for the 200cc versions with brown sealing lip.
Double lubrication hole for the LIMA bearing
Two additional shim bushes = crankshafts with extra long stroke can do without the centering edge of the lima half. Dimensions shim bushes AØ=9,95mm, IØ=8,40mm, h=13,80mm
SPECIAL FEATURES REED VALVE VERSION
The version with diaphragm inlet offers a very large inlet cross section. This makes it perfect for all those who want to get the maximum performance out of the set by means of a large carburettor and a corresponding exhaust.
Middle, full-surface membrane inlet
Incl. membrane intake manifold, incl. Diaphragm in RD350 format (perforation 58x48mm)
intake rubber 360° rotatable, connection width carburettor= Ø34mm
rubber suitable for Keihin PWK28, Mikuni TMX27/30, Dell'Orto PHBH28/30, VHS24- 30
No axis for oil pump control cast in
No bore for oil pump drive

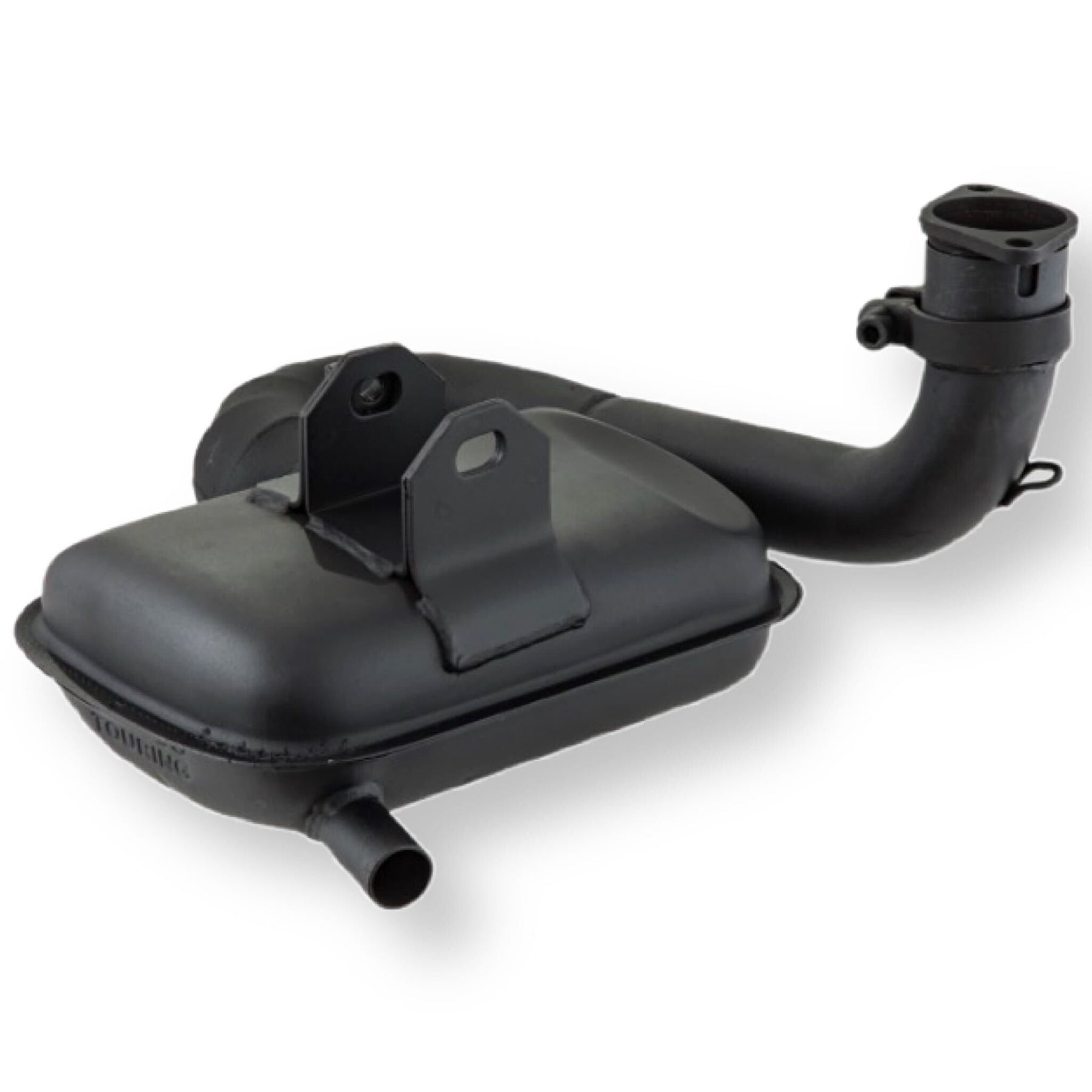

Vespa PX PE T5 Super Sprint Rally PINASCO 251cc Kit Touring Classic Racing Exhaust;
- left hand
- for Pinasco 251 motor

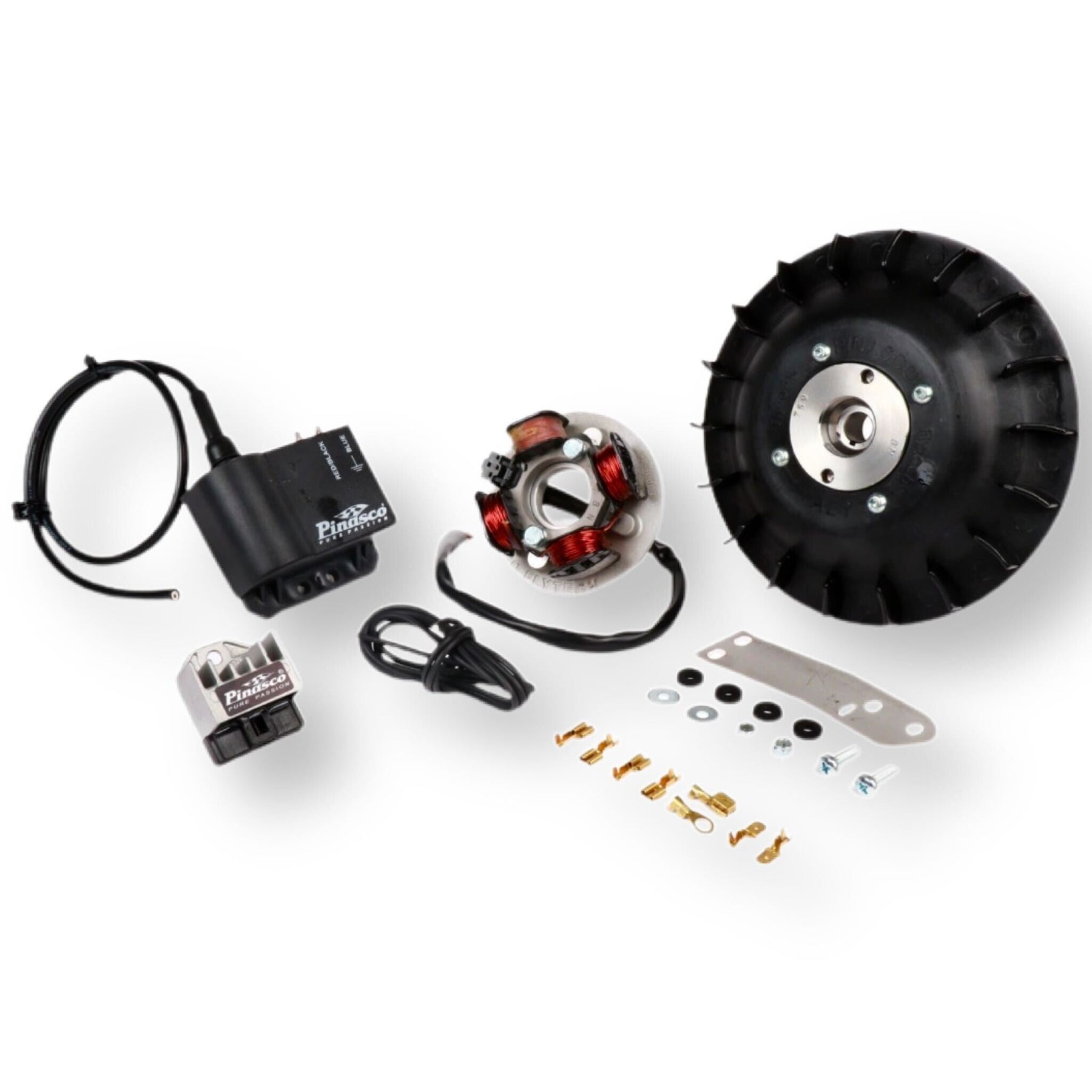

Vespa PINASCO 251cc Flytech Ignition Kit 1400g;
- flywheel ca.: 1400g
- incl. stator plate, ignition coil, black fan
PINASCO can now offer a further alternative to the classics provided by VESPATRONIC, PARMAKIT, etc. with the presentation of their newly developed 'Flytech' variable ignition system. This ignition possesses a pre-set curve that helps support the performance of the motor throughout the whole rev range. The system provides an electrical supply of 90W at 12V, similar to the Vespa Cosa type set up.
The main innovative features of the PINASCO system are found in the design of the flywheel unit. Two new developments have been presented in order to optimise the overall performance of the motor to which this system is fitted. The noticeably wider design of the magnets are surrounded by a sturdy, protective steel ring which fixes them firmly in position and prevents them from loosening and falling out. It also has the function of stabilising them in case of a crankshaft stub breakage. In spite of the flywheels overall weight (1.4–1.8 Kg) being similar to other performance ignitions this particular set up has a noticeably increased centrifugal inertia.
The centrifugal mass of the flywheel is enhanced by the shrink–fit steel ring which is positioned further from its axis due to its greater diameter. This causes increased inertia, as a built-in safety feature, and helps prevent damage to the motor being caused by over-revving. This makes it an ideal candidate for inclusion in touring set ups, with up to 20 PS. The dimensions of the flywheel remover needed are 28 x 1 mm. The fanwheel, made from a hard Nylon material, features an optimised fin design that is able to deliver 20% more air for perfect cooling of the cylinder.
The electronic regulator unit delivers 12V AC & DC which also enables battery charging with no extra components required!
