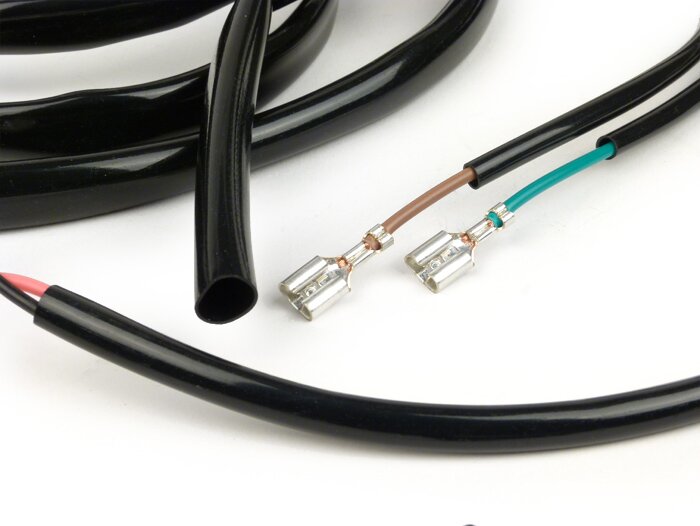

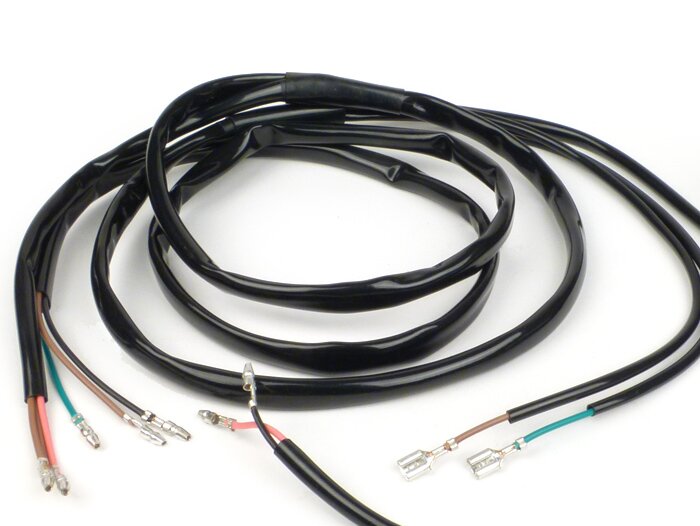

Lambretta Series 1-3 Li GP SX TV 12V Electronic Ignition Wiring Loom Harness - Black - BGM PRO
bgm PRO wiring harness for all Lambrettas with electronic ignition.
The wiring harness is made with as few wires as possible, so it meets the ideal of minimal electronics. The wiring goes to CDI, voltage regulator, headlight connector in the steering head, brake light switch and tail light. Disturbing terminal boards are not necessary.
Included in the delivery is a piece of bougie tube for the cable branch of the ignition base plate.
The wiring harness can be used for on-board power systems that run completely on alternating current (AC) as well as for systems that run completely on direct current (DC) with the Wassel regulator.
Colours
| cable colors tail light: | black, pink |
| number of cables for tail light: | 2 |
| cable colors brake light switch: | 2x brown, pink |
| number of cables for brake light switch: | 3 |
| cable colors headlight: | black, brown, green |
| number of cables for headlight: | 3 |
| cable colors rectifier: | brown |
| number of cables for rectifier: | 1 |
| cable colors CDI/high tension coil: | green |
| number of cables CDI/high tension coil: | 1 |
